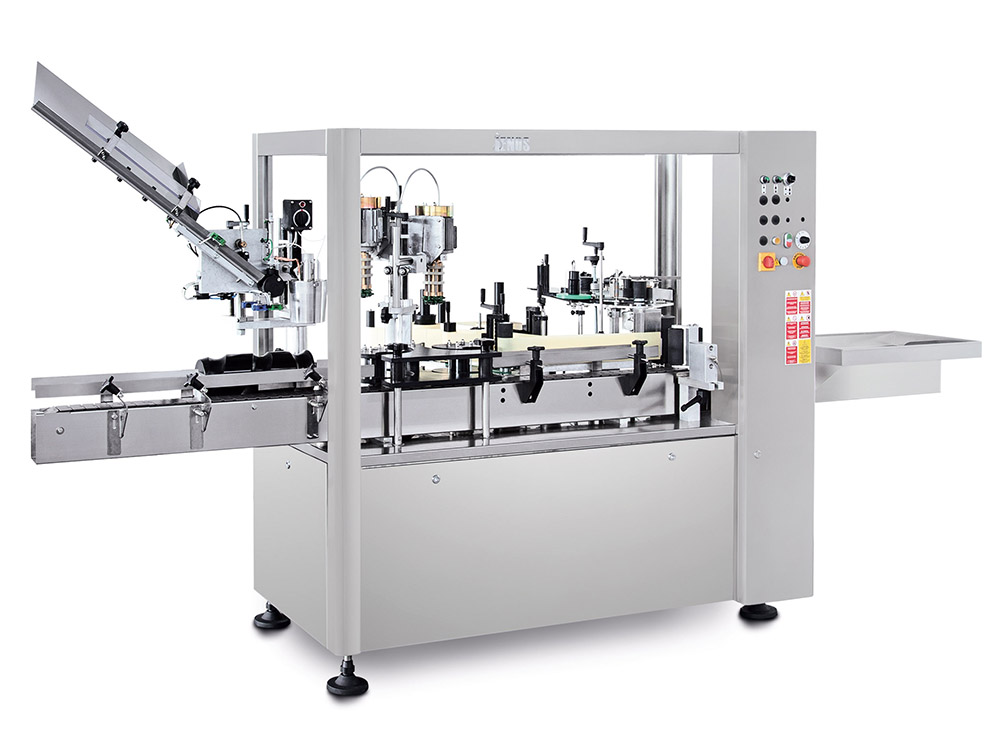

Beta Model Labelling Machine
Beta Model Labelling Machine
Technical features:
– Production with 2 rotary rollers: 2300 b/h
– Production with 1 Thermal Head: 2400 b/h.
– Production with 2 Thermal Heads in rotary: 2700 b/h
– Capacity up to 4 labelling stations
– Stepper motors and inverters
Option:
– Automatic and electronic capsule dispenser with excellent autonomy
– Closing system with Roller and/or Thermal Head
– Positioning system (notch on the bottom, side, existing label, capsules with brands, etc.)
– Controls with touch screen display
– Servo positioners
– Other accessories for conical bottles and different diameters
– Batch printer, thermal or inkjet, on the label
Technical specifications:
– Dimensions: 3500x1200x1800 h
– Weight: 700 kg
– Air consumption: 50 NL/Min at 6 Bar
– Electrical consumption: 3 Kw at 50Hz
– Electrical connection: 380 Volt 5p (3 phases+N+T)
